SpeedHeat Underfloor Heating
Experience a tailor-made Floor Heating System
The Safest and Healthiest way to heat your home
Industry leaders for 35 years, Speedheat underfloor heating has completed many local and international projects, allowing us to gain valuable experience to perfect our skills and heating knowledge. Our products are regularly improved and updated to the latest technology while maintaining high-quality standards.
While proudly remaining a South African company, we have operations in many parts of the world including Europe, Australia, and North America. The Speedheat floor
heating product focuses on heating a room quickly and effectively without negatively impacting the interior design of a room or the occupants and their comfort.
Speedheat can be installed under: tiles, carpets, laminates, vinyl, wood, stone, screed, etc.
Our customers' satisfaction is based on electrical safety, air quality improvement, comfort levels, and a healthier living environment.
Floor Heating Benefits
- Warms your home evenly and efficiently consistent temperature all around the room.
- Heaters are hidden and silent. No risk of burning or electrical shock no open flames or hot surfaces for children to touch.
- No airborne allergens or dry air, creating a much healthier living climate for asthmatics and allergy sufferers.
- Climatic conditions that reduce the growth of dust mites and molds in the indoor environment.
- The heating systems are maintenance-free.
- Economical Floor Heating Systems from Speedheat the floor itself is heated, and your home retains heat much better than air heating which is evaporated rapidly.
- Comfort is reached at lower temperatures with radiant heating, reducing energy usage.
We recommend installing floor insulation with all our heating systems to further increase the efficiency of the heating system.
Without floor insulation, a great part of the heat created by the underfloor heating is lost downwards into the concrete slab. Your home will warm up faster while reducing your energy consumption.
We are dedicated to supplying eco-friendly insulation products. The thermal insulation product range is suitable for both new builds and renovations.
The Floor Build-Up

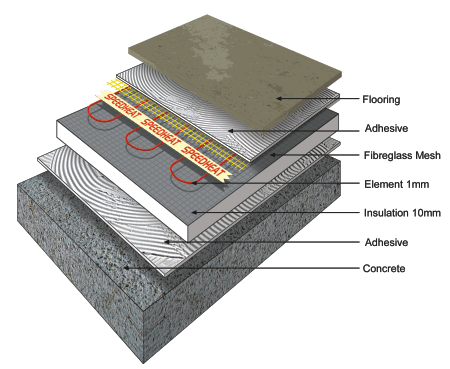

The under-tile floor heating element is installed on top of insulation boards or insulated screed (5 – 10mm floor insulation board) and secured with adhesive fiberglass mesh.
A protective screed is then applied and the floor is subsequently tiled.
Some form of insulation must be installed either on top of the builder’s screed or by using an insulating screed.
Insulation decreases the downward heat flow into the concrete slab, thereby improving the response time and efficiency of your under-tile heating system.
Floor Heating Thermostats
Thermostats are an important part of your Speedheat electric floor heating system. The thermostat is jointly responsible for the improvement of your comfort of living, and the reduction in energy consumption. With Speedheat every room can independently be controlled with a programmable thermostat.
A room thermostat works by sensing the air temperature – switching on heating when the air temperature falls below the thermostat setting, and switching it off once this set temperature has been reached.
Most people are comfortable with a room temperature of 20 – 22ºC. We recommend that you test to see what temperature is most comfortable for you. Because floor heating is mainly radiant heat, comfort levels are reached at lower temperatures than with air heating.
The SpeedHeat Element
The Speedheat underfloor heating element is designed for durability and safety.
Its discreet design includes internal and external insulating sheaths that withstand heat and high voltage.
The fluoropolymer insulation is fully waterproof and corrosion-resistant. All Speedheat heating elements have a full earth screen for electrical safety as per IEC standards.
Furthermore, our patented element has won the SABS award for outstanding engineering design.
